Desk

2020, personal

Simple, light, and low-cost work desk for a small office

Work
︎ Sketching

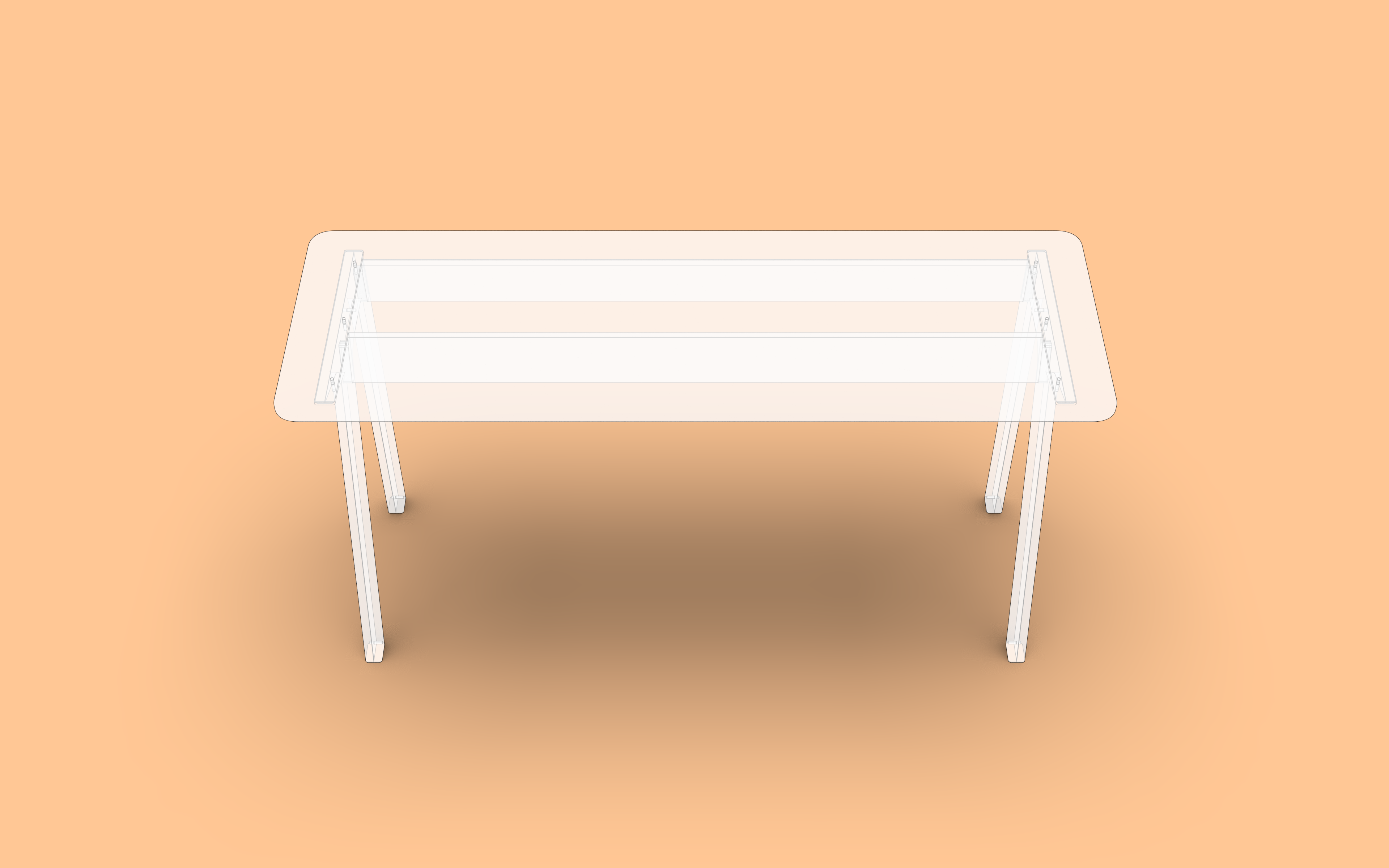

︎ 3D modeling

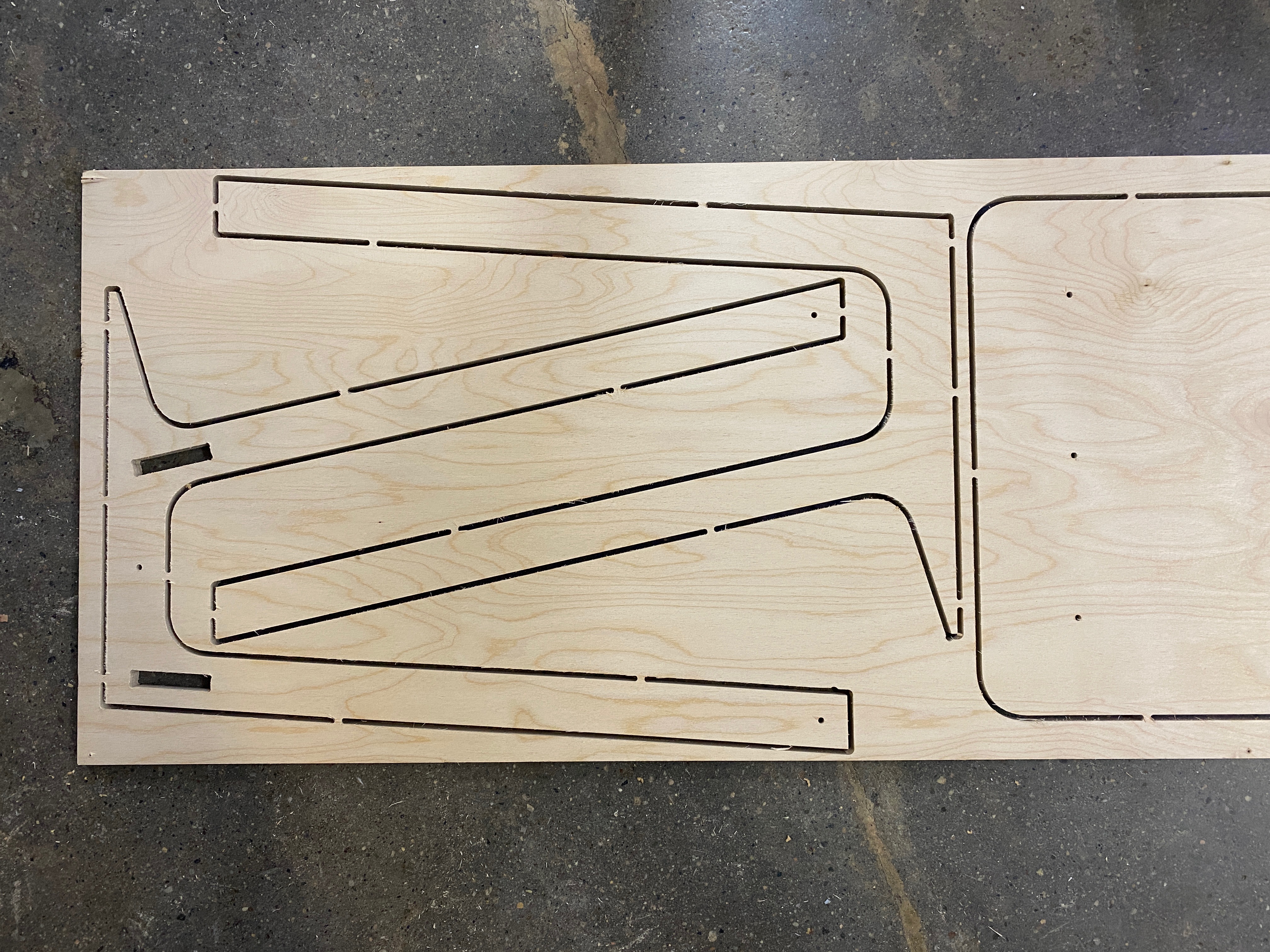

︎ Fabrication with Shopbot
︎ Visualization

Goals
︎ Lightweight and minimal material use
︎ Stiff and strong
︎ No screw attachment

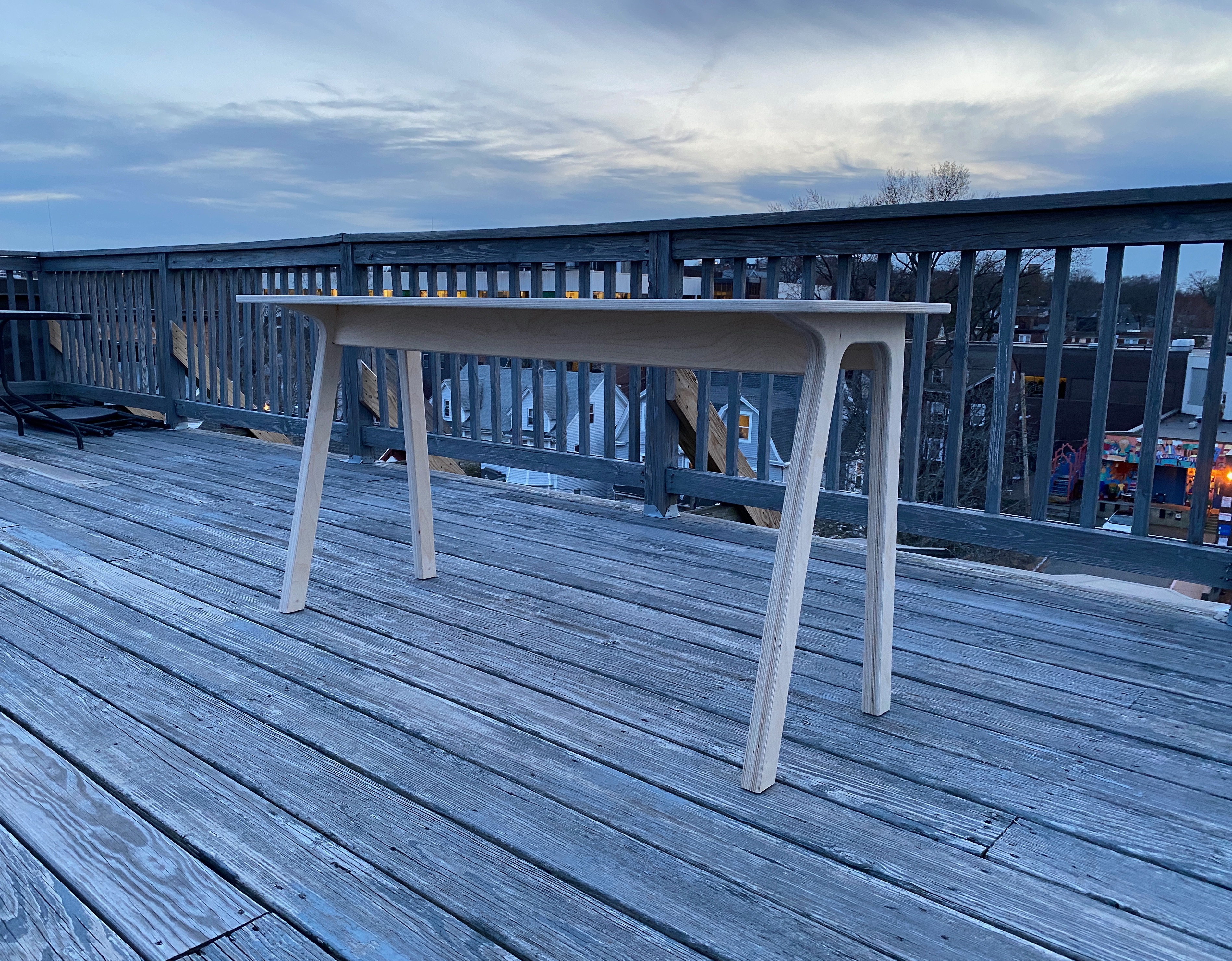

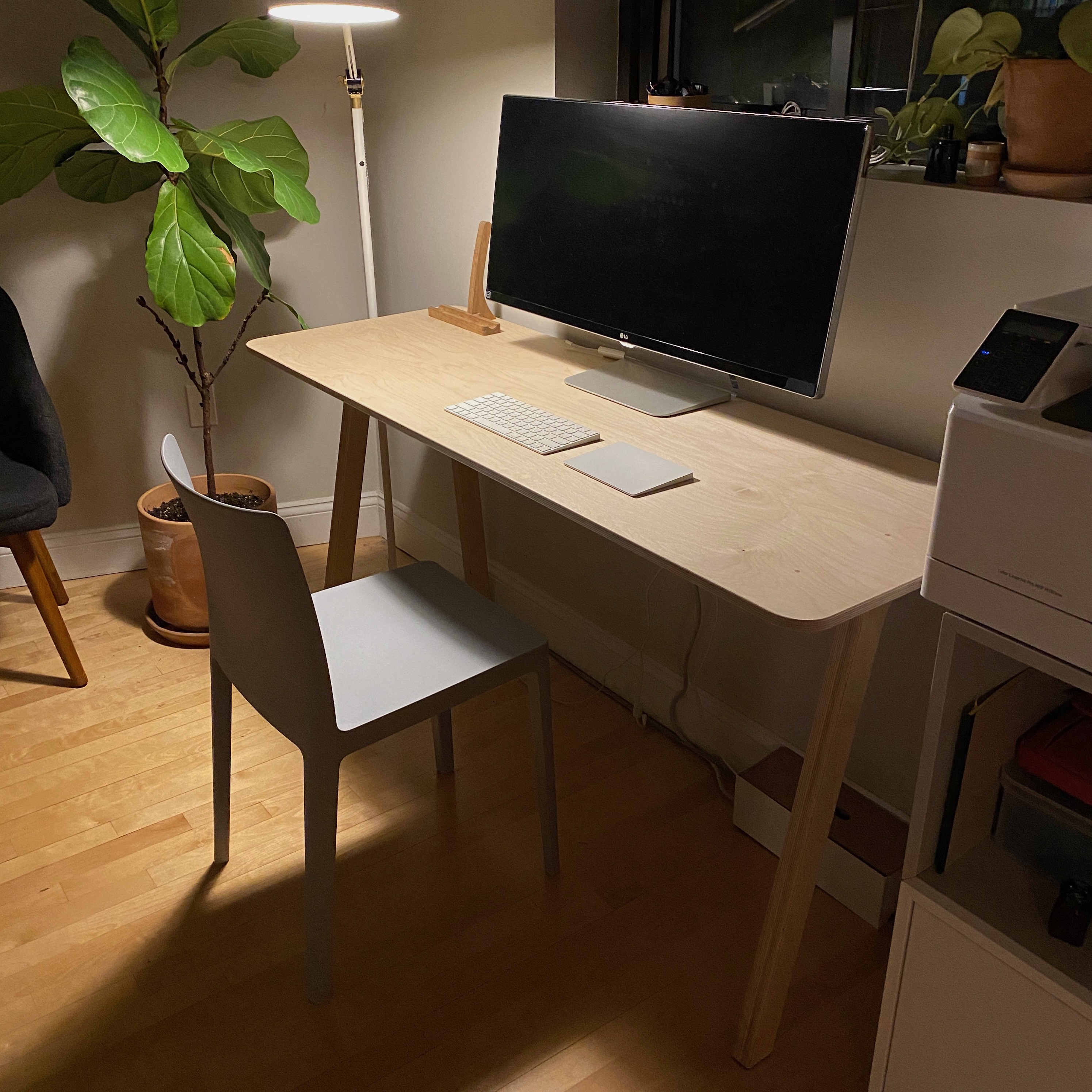

I designed this desk specifically for small office use. It is slightly shallower than most desks but deep enough for comfortable use with a large monitor. The top surface is supported by truss slats that also align with and engage the legs. To achieve slim legs, I used two layers of plywood and aligned them with dowels. This desk is made of just four unique parts (top surface, 2x truss, 2x leg outer, 2x leg inner), wood glue, and wood dowel pins. I finished the assembly using a hardwax-oil wood finish. The total cost of materials for this design is $120.
